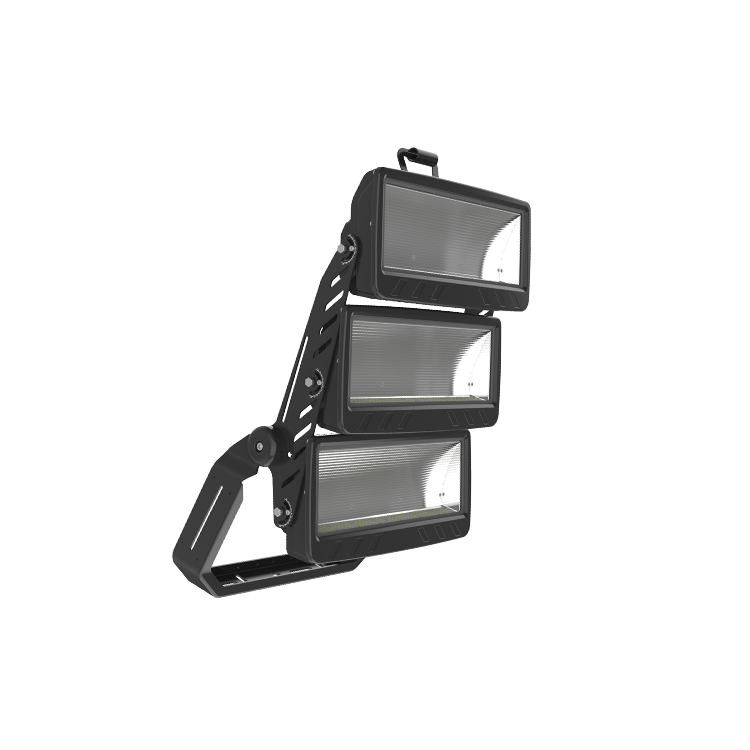

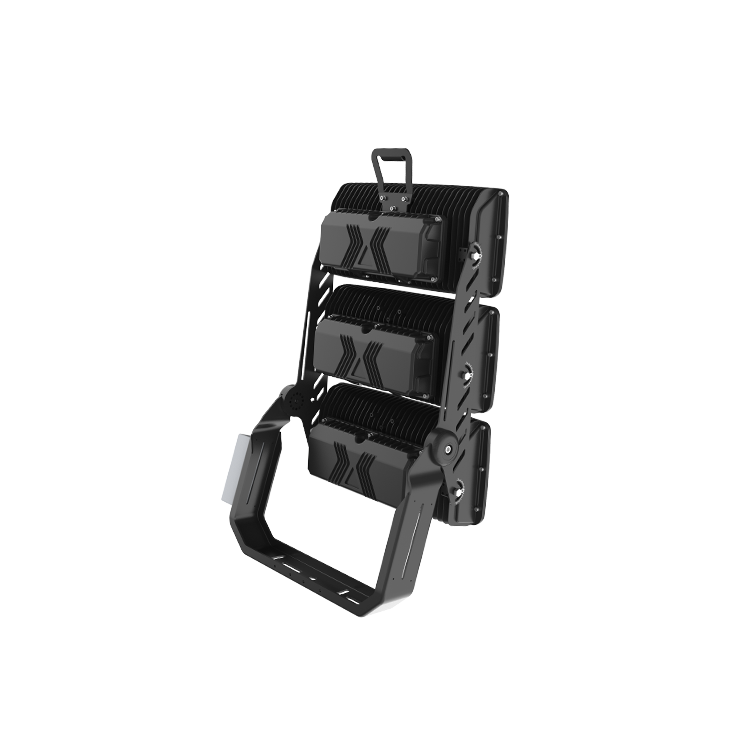

AOK-900WiNF (iNFD Diffused Type)
Up to 150LM/W, Module design stadium light, 300W~1200W available. Equivalent to traditional 3800W MHL replacement.
PRODUCT OVERVIEW
iNF series is designed for exterior sports lighting , a superior high output, high efficiency LED flood light, featuring a unique optical design that virtually eliminates glare with minimal impact on performance. It is available in a variety of flood distributions for lighting applications such as large areas, port and rail centers, exterior sports.
FEATURES
1. Optical Lens:
Precisely engineered optics which makes the light more efficient and concentrated for stadium lighting. It also reduces glare and avoids light trespass in the wrong area.
2. Mounting Bracket:
Innovative design, flexible, and accurate to adjust the mounting angle. Aluminum alloy materials, anti-corrosion.
3. Tempered Glass:
The tempered glass prevents the PC lens from yellowing when the fixture is exposed. It also protects the lens from sand and dust deposition. Ideal for outdoor applications.
4. Hand Grip:
Convenient for workers to carry when installation.
ELECTRICAL
•0-10V / PWM / Resistance dimming optional / DALI
•Voltage: 100-277V, 50/60HZ standard; 347-480V 50/60HZ optional.
•High efficiency driver: >92%.
•Operating temperature rating: -40°C to 50°C (-40°F to 122°F).
•Power factor >0.95.
• 2700k, 3000K, 4000K, 5000K, 5700K, 6500K, CCT.
• Minimum CRI of 70, 80 and 90 optional.
CONSTRUCTION
• Heavy duty die-cast aluminum housing.
• Driver compartment can be either installed onto or separated from the light fixture.
• Light engine is thermally isolated from driver component.
• UV stabilized polyester powder paint finish.
• Horizontal and vertical aiming.
• Rugged, weather-tight design and 3G Vibration ratings ensure durability even in harsh environments.
DIFFUSED TYPE
Diffused type (INFD) refers to that the direction of the light source is not directly illuminated to the designated area, but is reflected by magnum reflector to the designated area. Pros: Light source is placed aside, low eye irritation. Comfortable light vision, glare rate UGR<30; Cons: The lighting effect may be a bit less efficient than straight type, limited distribution angle. T2 or T3 distribution is available.
MOUNTING/ACCESSORIES
Standard Yoke Mount.
The visor is designed to allow effective light to reach the designated area and prevent excess light from spilling out to avoid the impact on the surrounding environment. INF uses an adjustable visor (sectional type), which can be adjusted to an angle of < 25 degrees by hand screw. Compared with a single fixed visor which is mainly used on the market, our visor is more flexible and easy to maintain.
RECOMMENDED USE
• Stadium light
• Outdoor playground
• Railway center
DIMENSION
.
CERTIFICATION/LISTING
CE/CB/ENEC/TUV Listed
Download Here
AOK-900WiNF-NV-L5-00-5070-T201.ies
